System Overview

Panorama is an aluminum railing system:
  • In compliance with standards NF 01-012 and NF 01-013,
  • Meets the Eurocodes categories A and B.

    For requirement with categories C1 to C4, please contact us.

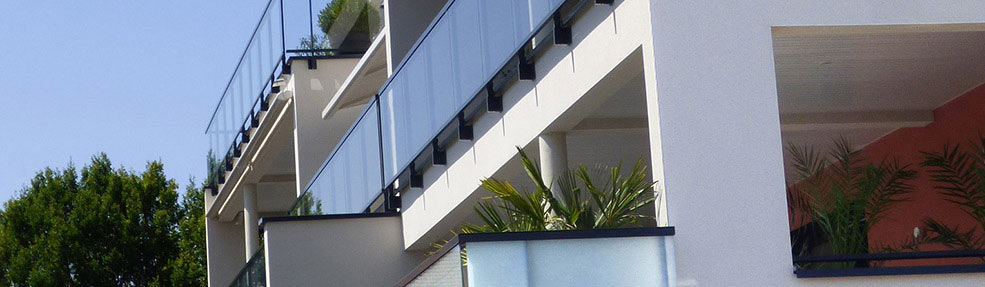

    It is suitable for both roof terraces and balcony. The system is delivered to measure with a lay-out plan.

The advantages of Panorama


  • Filling masking the uprights
  • Aesthetic finish with a wide range of models and RAL colors
  • Tailor-made delivery with charting plan
  • Quick and practical assembly with pre-assembled modules

standards

Panorama meets the standards :
    • NF P 01-012 (Railing dimensions)
    • NF P 01-013 (Tests: method and criteria)
    • NF P 06-111-2 / A1 (National Annex to Eurocode 1)

BIM

For your BIM projects, dani alu offers a range of Panorama® guardrails (Vision series only) in Revit® format.1)

Accessories

The Panorama system has been designed with a discrete and practical aesthics.
  • Stirrup
    The stirrup has a side screw to be pre-positioned which facilitates the assembly of intermediate rails and filling modules.
  • The junctions
    The junction parts are designed to fit into the alignment of the profiles.
  • The closure
    A closure fits into the lower throat of the handrail for a perfect finish.
  • The tips
    Tips are available to ensure the finishing of all handrails and smooth models.

Handrails



The rectangular handrail is available for all fills with vacuum under handrail. They also work with the intermediate and smooth rail of rectangular filling (combination with round model possible on request).

The round handrail is available for all fills with vacuum under handrail.
They also work with the intermediate and smooth rail of rectangular filling (combination with round model possible on request).
The curved handrail can reach a full height, with either a glazed or barred filling. It comes with the lower part by a rectangular filler.


Fixings

Shoe B with hold.

The shoe B is fixed on a slab or on a low wall. It adjusts the handrail vertically and horizontally. A wedge fits the hoof for an aesthetic finish.

She allows to :
  • Hide adjustment screws
  • Propose a rigid support

    The hold is perforated to enable runoff of rainwater.

    Adjusting the length of guardrail is possible with 2 screws over a range of ± 4.5 °.
    Adjusting the height of the upright reaches up to 10mm.

Shoe A5

The A5 shoe is positioned in the nose of the slab, and the inside or outside a low wall.

This fixing allows movement in front of the slab nose.

Shoe A60


The A60 shoe is the perfect technical solution for a combination with the Couvernet  system.

Shoe Z under coping

The Z-shoe is attached to the top avoiding any drilling of the seal .
It makes it possible to make an inaccessible roof terrace accessible. It is suitable for the majority of roof-terraces when the handrail is too short.
It is compatible with the Covered Covert system.
A specific offset part can be added to adapt the system to the attachment on an insulated acroter (up to 200 mm of insulation complex).

Shoe D

Panorama with hoof D makes it possible to secure an accessible area in roof terrace. It is fixed on the slab with sealing complex.
In accordance with DTU 43.1, a top plate sleeve and a bottom platen sleeve are required for the sealing connection.

Série Vision - Glass filling

The variants

  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Fillings

Pre-fitting module with laminated glass 44.2 :
  • Clear glass
  • Translucent glass granite
  • White translucent glass

Other finishes on request.

Handrails

  • Handrail (for "any height" only)
  • Rectangular handrail (for variants other than "any height")
  • Handrail round (for variants other than "any height"

Cover for slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :
  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams
Available in glazed :
  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Example of use

Example of use

HPL Panel Filling

The variants

  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Fillings

Pre-framed module with HPL panel (high pressure laminate) is 8 mm thick. The HPL panel is opaque and highly resistant, andmeets contemporary architectural requirements. Its design can vary with a range of colours and effects of materials such as wood, metal, etc. on offer.

Handrails

  • Handrail (for "any height" only)
  • Rectangular handrail (for variants other than "any height")
  • Handrail round (for variants other than "any height"


Cover of slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :

  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams
Available in HPL en :
  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Example of use

Filled bars

  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Fillings

Pre-framed module with:
Square bars
 or round

Handrails

  • Handrail (for "any height" only)
  • Rectangular handrail (for variants other than "any height")
  • Handrail round (for variants other than "any height"

Cover for slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :

  • Full height
  • Empty under handrail
  • An intermediate rail
  • Two intermediate beams

Example of use

Perforated sheet filling

Fillings

Perforation is customisable but com 20/10 as standard.

Handrails

  • Rectangular handrail (for variants other than "any height")
  • Handrail round (for variants other than "any height")

Standard perforations

  • round 10 mm
  • sqarre 10 mm


Customisable perforations

Multiple possibilities for customising the railing.

Cover for slab nose

This allows the filling to move in front of the slab nose.

Exists in paneling enclosed in two intermediate beams

Example of use

Creeping panorama

Creeping Panorama® is a guardrail to ensure a staircase's safety. It is available in three versions:
  • vision
  • decor
  • 5 intermediate beams

Variations

  • Full Vision Series
  • Empty Vision series under handrail
  • Vision series an intermediate rail
  • Vision series two intermediate beams
  • Decor series two intermediate beams
  • 5 intermediate beams


For the Vision series :


Pre-fitting module with laminated glass 44.2:
  • Clear glass
  • Translucent glass granite
  • White translucent glass
Other finishes are available on request.

For the decor series :

Pre-squared module with 20 / 10th perforated sheet filling

5 intermediate beams

Handrails

  • Convex handrail (for "all-height" only)
  • Handrail rectangular (for variants other than "any height")
  • Handrail round (for variants other than "any height")

Creeping Panorama Fixation

The Creeping Panorama® can be fixed on the last or penultimate step.
  • With the A5 shoe
  • With the shoe B
  • Handrail round (for variants other than "any height")

Other applications

Gate

The Panorama gate allows occasional access to inaccessible areas delimited by a Panorama railing. The gate is available as a bar, with a round or square filling.

Window Murals


The guardrail is secured to the handrail and in the structural work. The finish is hidden.


Fillings



Pre-fitting module with laminated glass 44.2:
  • Translucent glass granite
  • White translucent glass


    Other finishes available on request.
