Dallnet series N®: Adjustable aluminium cladding system to protect balcony edges
System overview
System
Dallnet slab nose is provides a solution for the refurbishment of external elevations against frequently encountered problems: damage to balcony edges, exposed reinforcement, rust, cracking, leakage, water staining, dirt, etc.
The combination of an upper profile and a lower profile allows the system to be adjusted to different slab thicknesses. Available at 3000mm or to measure.
Available in Danilac powder-coated aluminium in any RAL colour and in natural anodised aluminium (samples are available on request).
Presentation video of the product
This is a video presenting the product and its easy installation
Profiles

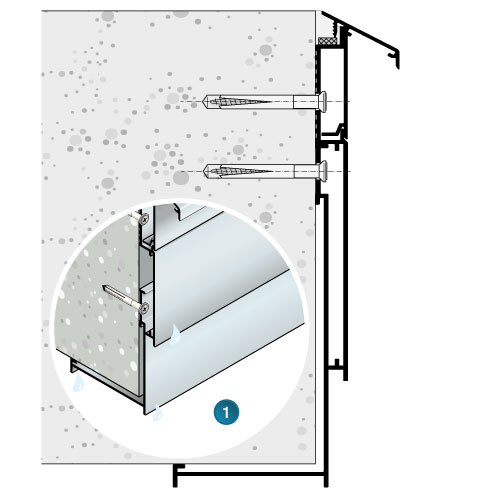

Upper part profiles
The protector hides the fixings for a perfect finish and the runoff water.
It also protects the mastic joint.
Frontal profiles with backing joint
Frontal profiles evens out any surface unevenness. Particularly useful for renovation.
Frontal profiles are delivered factory-drilled 7 mm diameter at 300 mm centres.
The backing joint allows the mastic to keep its elasticity, absorbing expansions and avoiding torsion cracking.
dani alu also produces adapted stainless steel Danivit fixings.
With basic profiles
Combination of the frontal profiles with basic profiles
| Slab witdh min-max |
Basic profile | Frontal profile |
|---|---|---|
| 112 - 145 mm | B60 | F115 |
| 133 - 170 mm | B85 | F115 |
| 152 - 209 mm | B85 | F155 |
| 198 - 274 mm | B150 | F155 |
Lower part profiles
Lower part profiles have two places for water discharge in the lower part.
Lower part profiles are delivered factory-drilled with a 7 mm diameter at 300 mm centres.
dani alu also offers adapted stainless steel Danivit fixings.
With recuperator profile
Combination of frontal profiles with the recuperator profile
| Slab width min-max |
Recuperator profile | Frontal profile |
|---|---|---|
| 139 - 181 mm | R90 | F115 |
| 164 - 221 mm | R90 | F155 |
The recuperator profile allows the water evacuation through frontal, lateral or under-face departure chutes.
Accessories
Accessories :
For frontal profile with basic profile or recuperator profile, accessories are the following :
- Internal angle
- External angle
- Nozzle
- Chute
- Departure
