Dallnet® Slab Edge Covering Series N with upper and lower profiles combined is not available yet in our shop. Please fill in the form in the last page of the link below so that we can process your request:
Dallnet with gutter profile Request for information form
Product Description
Dallnet® ...
Read more
Product description
Dallnet® Slab Edge Covering Series N with upper and lower profiles combined is not available yet in our shop. Please fill in the form in the last page of the link below so that we can process your request:
Product Description

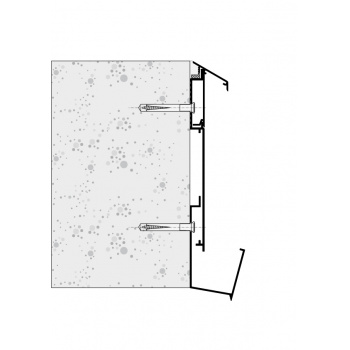

Dallnet® Series N with gutter profiles is a slab edge covering system composed of upper and lower extruded aluminum finishing profiles enabling the adjustment to the covering height on site.
The system is composed of:
- A rainwater draining profile with gutters
- A set of facing profiles in two parts, made from a facing profile and a protecting cover profile with a water drip which hides the fixings and insures a good surface water protection on top of the system.
Combining the profiles, the system may adapt to any slab thickness.
Fulfill the Client's needs with our numerous finish options: Danilac powder coated aluminium to any RAL color, fine or sandy textures, powder-coated or anodized natural color (samples on demand).
Technical specifications
Dallnet Slab Edge Covering Series N is adapted to slabs with an varying thickness. The setting ranges are as:
- Slab thickness between 139 and 181 mm, combine F 115 and R 90
- Slab thickness between 164 and 221 mm, combine F 155 and B 90
For any other slab thickness, other technical solutions are possible; please contact our technical experts.
The system is deliver in 3-meter or custum-measured bars with its accessories, such as junction pieces, internal angles, external angles, gutters and end pieces…
Technical specifications
Links and related products
Downloads
Installation instructions (FR):
Cross-section (FR): Documentation (EN):
