Rivnet EWIS 60/160
Rivnet is the registered trade mark of an extruded aluminium roof edging and parapet wall raising piece system.
The shapes and sizes of these Rivnet units provide a solution for special cases, particularly when external wall insulation systems are in use. The Rivnet 60/160 allows thick weatherproof ...Read more
Product description
Rivnet is the registered trade mark of an extruded aluminium roof edging and parapet wall raising piece system.
The shapes and sizes of these Rivnet units provide a solution for special cases, particularly when external wall insulation systems are in use. The Rivnet 60/160 allows thick weatherproofing systems to be concealed.
Technical specifications
Technical specifications

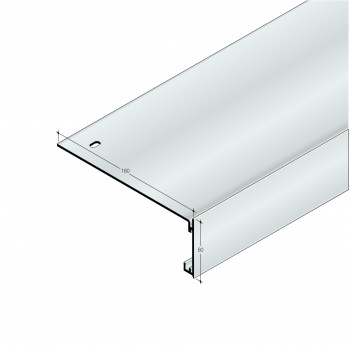

160 mm | |
0 mm | |
60 mm | |
60 mm | |
Yes | |
No | |
Rivnet EWIS 60/160 | |
3-meter bar | |
Oblong holes 6x9 mm, Stanchion distance 300 mm | |
1.38 kg/ml | |
Aluminium | |

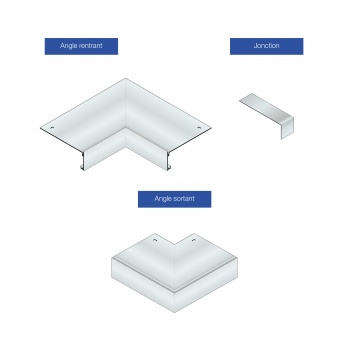

External and Internal angle sleeve, Junction sleeve | |
3 working days for mill finish, 10 working days for powder-coated finish |
